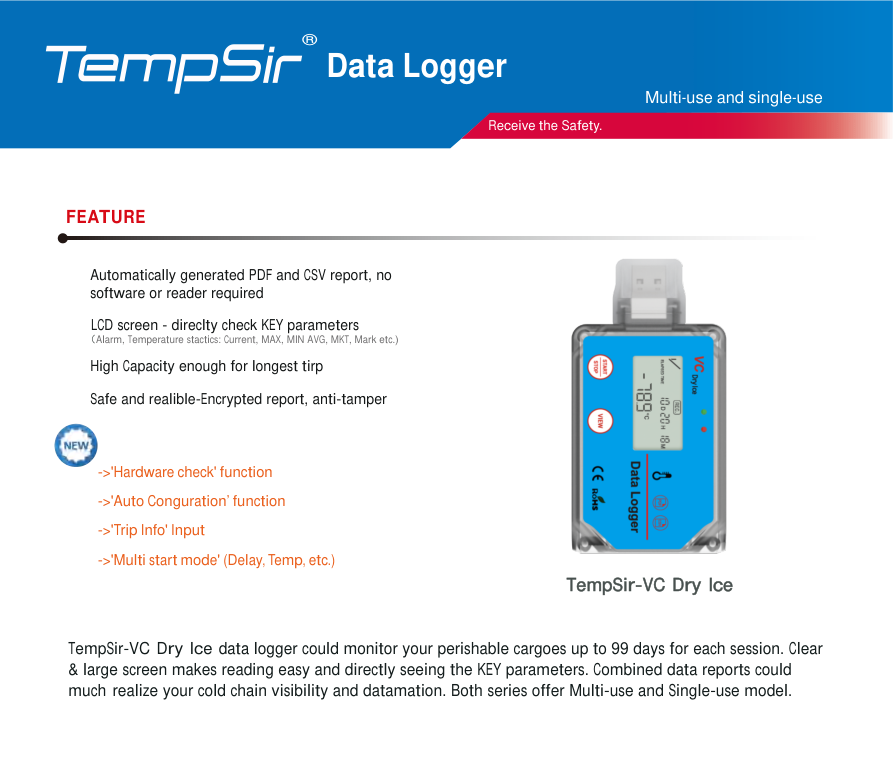

TempSir-VC Dry Ice Data Logger
Category: WHO Pre-qualified Loggers
A reusable external-probe logger for dry ice, ultra-low freezers and specialist cold-chain applications. It combines real-time LCD status, configurable alarms, temporary reporting and automatic PDF/CSV output.
Introduction
TempSir-VC Dry Ice is an ultra-low-temperature data logger designed to monitor perishable cargo for up to 99 days per recording session. The large LCD provides direct visibility of key trip parameters and alarm information.
Ultra-Low Temperature Monitoring
With a measurement range from -90°C to +70°C, the logger is suited to dry ice shipments and other specialist cold-chain applications requiring very low temperature monitoring.
Single-Use and Multi-Use Options
The series is available in both single-use and multi-use versions, supporting different shipment and reuse requirements.
Automatic Reports
Encrypted PDF and CSV reports are generated for trip review. The logger records temperature statistics and supports shipment documentation without requiring a separate reader.
Applications
Designed for air, sea and land transportation of pharmaceuticals, biological materials and other temperature-sensitive products transported under dry ice or ultra-low-temperature conditions.
Specifications
| Model | TempSir-VC Dry Ice |
|---|---|
| Type | Single-use and Multi-use |
| Measurement Range | -90°C to +70°C (-130°F to +158°F) |
| Accuracy | ±0.5°C (-50°C to +70°C); ±1.0°C (-70°C to -50°C); ±1.5°C (-90°C to -70°C) |
| Resolution | 0.1°C |
| Recording Capacity | 16,000 points |
| Log Interval | 1 minute to 24 hours |
| Shelf Life / Battery Life | 2 years |
| Report Format | Encrypted PDF / CSV report |
| Size | 106 × 51 × 18mm |
| Weight | 57g |
| Waterproof | IP65 |
| Configuration Software | TempSir Software |
| Certifications | CRF 21 part 11 Compliant |
TempSir Software
For the multi-use logger, TempSir Software can be used after each shipment to configure the next recording cycle. Users can set parameters such as logging cycle, logging interval, alarm settings and start mode.
Software Functions
- Hardware check
- Forbid manual stop
- Trip information input
- Auto configuration for multiple loggers
- Restart for the next recording task
